  • Home > Products > Miniature linear guides
  • Miniature linear guides

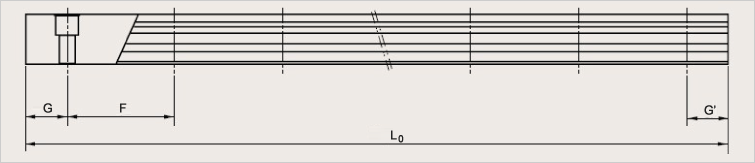

Standard & max. length of rail

Standard & max. length of rail( Unit : mm )

Name number SJ 5 SJ(L) 7 SJ(L) 9 SJ(L) 12 SJ(L) 15
Standard length of rail(L0) 40 40 55 70 70
55 55 75 95 110
70 70 95 120 150
85 85 115 145 190
250 445 1135 1120 1070
265 460 1155 1145 1110
280 475 1175 1170 1150
295 490 1195 1195 1190
F 15 15 20 25 40
G 5 5 7.5 10 15
Max. length 295 490 1195 1195 1195

Standard and maximum length of the rail SJW type( Unit : mm )

Name number SJW 5 SJW (L) 7 SJW (L) 9 SJW (L) 12 SJW(L) 15
Standard length of rail(L0) - 50 50 70 110
- 80 80 110 150
- 110 110 150 190
- 140 140 190 230
-
- 1100 1100 1070 1070
- 1130 1130 1110 1110
- 1160 1160 1150 1150
- 1190 1190 1190 1190
F - 30 30 40 40
G - 10 10 15 15
Max. length - 1190 1190 1190 1190

Note) SJ(L) and SJW(L) type is the same use the rail.
